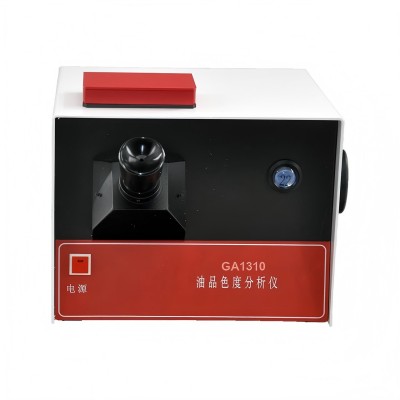

GA1310 Petroleum Product Polorimeter

Description:

GA1310 Petroleum Product Colorimeter is suitable for determining the color of lubricating oil and other petroleum products, which can correspond to the 16 color numbers of GB6540. When determining, the sample of petroleum products to be measured is injected into the colorimetric tube, and then compared with the standard color plate, its colorimetric color number can be determined. Used in petroleum, chemical, food and other industries.

Executive Standard

GB/T6540, ASTM D1500

Instrument Characteristics

1. The instrument consists of a standard color disc, an observation optical lens, a light source and a colorimetric tube.

2. The use of frosted milk shell lamp as the light source.

3. The light source can be evenly irradiated in the color glass plate and the colorimetric tube of the standard color disk after the color filter.

4. Optical eyepiece with light adjustment and focusing ability, easy to use.

Technical Parameters

• Colorimetric tube diameter: Φ32mm high 120 ~ 130mm

• Sample size: 20ml

• Ambient temperature: 5℃ ~ 45℃

• Relative humidity: ≤85%

• Power supply voltage: AC 220V±10% 50Hz±10%

• Power consumption: <500W

• Standard color plate: 26 Φ14 light holes, 25 standard color glass pieces with 1-25 color numbers in sequence, 26 holes are blank

• Color: 1 ~ 25

• Overall dimensions: 400mm×320mm×295mm

• Instrument weight: 4kg
