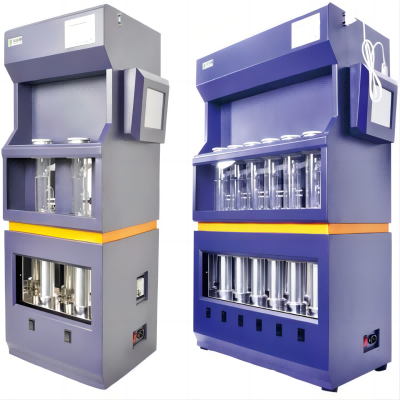

Automatic Soxhlet extraction system

Description:

The full-automatic fat analyzer is designed according to Soxhlet extraction principle and national standard GB/T 14772-2008. The structure design of the instrument improves the recovery rate of the solvent and ensures the accuracy and consistency of the experimental results. The windows likeoperatingsystemoftheinstrumentasa simple and easy interface, and the perfect experimental configuration systemcan meet variousexperimentalrequirements.

Performance Characteristics

Test automation

It integrates temperature control,extraction,washing,solvent recovery,pre drying,calculation and printing to realize automatic test.

UItra high recovery

Super high recovery, recovery rate more than 92% (solvent: petroleum ether, ether; time:90 minutes).

Wide range of temperature control

It is suitable for various organic solvents with different boiling points, with a wide range of temperature control, from room temperature to 300℃.

All extraction methods

A variety of optional extraction methods (Soxhlet extraction, thermal extraction, Soxhlet thermal  extraction, continuous flow), suitable for a varicty of sample test methods.

More accurate results

With the design and excellent technology, there lative error of the experimental results is less than  1%, and the high parallelism of the instrument can be achieved. The pre drying temperature can  be set independently to reduce the Extract the fat loss of the sample to ensure the accuracy of the experimental results.

UI friendly design

The user-friendly operation interface, easy to operate and flexible scheme configuration, close to  the experimental requirements, can shorten the working time and improve the working efficiency.

It's cost-effective

The principle structure design and accurate material selection greatly reduce the use cost of the  instrument, reduce the maintenance cost of the product, and improve the service life of the  product; without filter paper cartridge, the annual average saving can be 3000-10000 RMB.

High security

Safe and reliable fat tester, the product has built-in ether leakage monitoring system, with the  minimum detection limit of 90ppm (less than China's occupational exposure limit), ether leakage, audible and visual alarm; advanced cooling water monitoring system, automatic prompt after  water cut of condensation device.

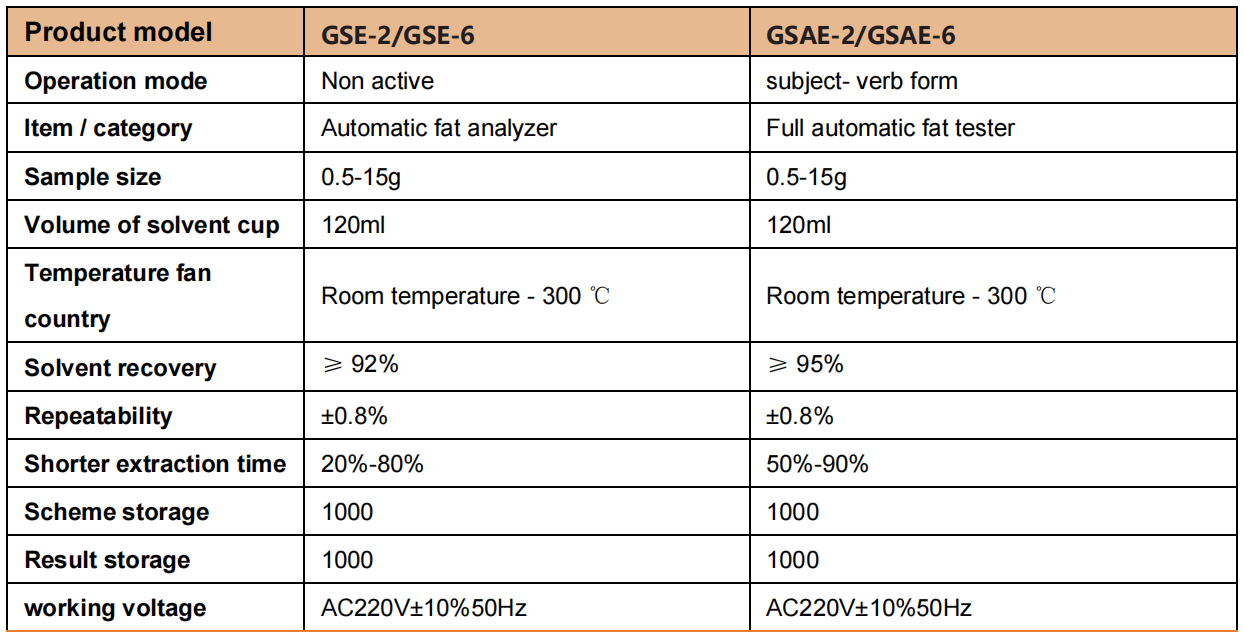

Technical Parameters
