Multi-Channel Automatic Soil Carbon Flux Measurement System

Description:

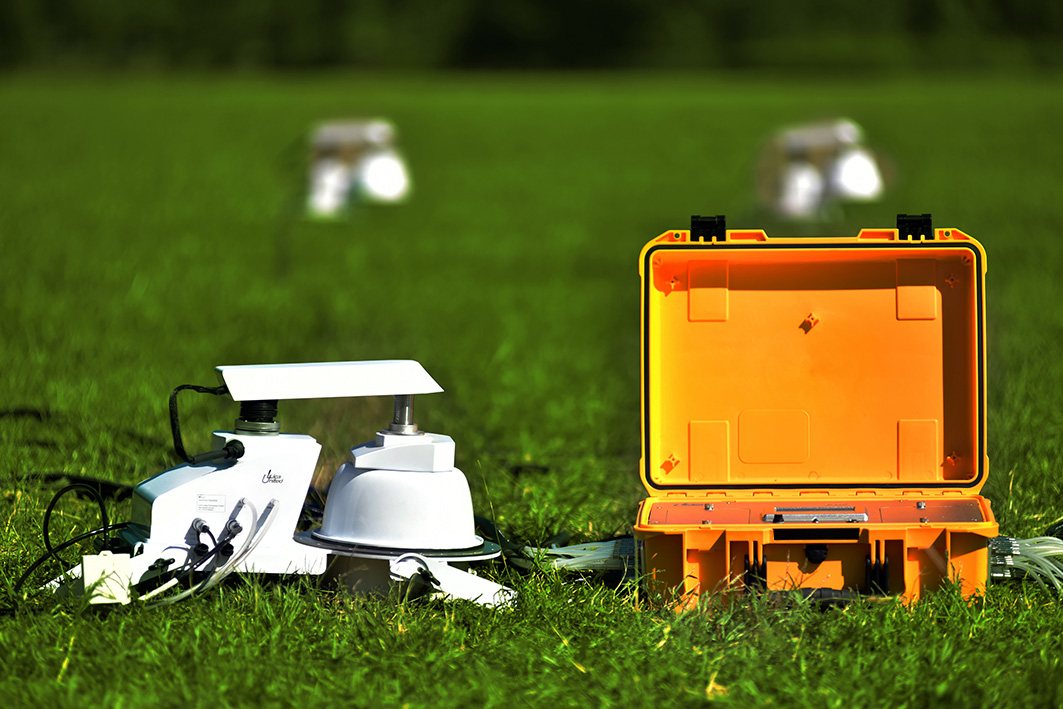

GSF-9000 Multi-Channel Automatic Soil Carbon Flux Measurement System can measure soil CO2 flux at multiple points for continuous, long-term soil carbon flux monitoring, and can be connected to up to 18 respiration chambers.

GSF-9000 can also be used for CO2 and water vapor profiling studies.

Features:

* The control system can connect up to 18 breathing chambers, which is more suitable for multi-repetition and multi-processing experimental design;

* Long-term field monitoring, no human duty, can achieve continuous, high-precision, automatic unattended monitoring;

* Automatic calculation of gas flux without post-data processing;

* Each measuring chamber can be connected to auxiliary sensors such as soil temperature and soil moisture;

* Light weight, low energy consumption; The whole system is robust;

* Storage media: SD card.

Specifications:

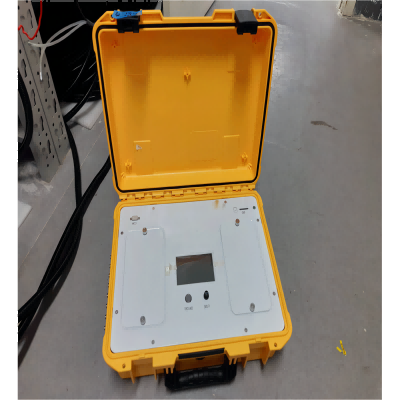

* GSF-9000 main unit:

Measuring principle: Non-dispersive infrared

Measuring range: CO2 : 0-6000 ppm, H2O : 0-60,000 ppm

Accuracy : < 1% of reading

Repeatability/precision: < 1 ppm

Operating temperature: -20~60 °C

Number of respiratory chamber interfaces: 9 or 18

Storage media: SD card

Communication Interface: RS-232 / RS-485 / SDI-12

Synchronized pump: 4.2 L/min brushless diaphragm pump

Display: 5-inch LCD touch screen

Working environment:

Temperature: -20~60 ℃

Humidity: 0~95% RH (non-condensing)

Dimensions: 51 x 40 x 19 cm

Weight: 14.1 kg

* Breathing chamber

Measuring area: 276.27 (cm²)

Breathing chamber fixed volume: 3243.8 (cm3)

Cable length: 15 m

Operating temperature: -20 ~ 60 ℃

Barometric Pressure Detection: Measuring Range: 15 ~115 kPa, Measuring Precision: ±1.5%

Temperature detection: Measurement range: -25 ~85 ℃, measurement accuracy: ±0.5 ℃

Dimension: 55 x 28 x 32 cm

Weight: 8.55 kg

* Soil temperature and humidity sensor

Humidity measurement range: 0 ~ 100%,  accuracy: ±2% (0-50%), ±3% (51-100%)

Temperature measurement range: -30 ~70 ℃, accuracy: ±0.5 ℃

Cable length: 2 m
