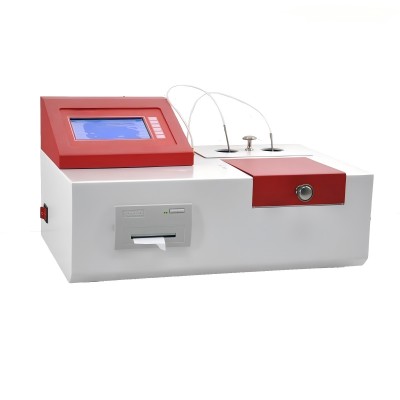

GA1040 Automatic Acid Value Tester

Description:

GA1040 Automatic acid value tester is used for acid value analysis and measurement of transformer oil, turbine oil and anti-fuel oil samples. The instrument is a comprehensive application of mechanical, optical and electronic technology, using a microprocessor, can automatically realize multi-sample switching, titration, determination of titration endpoint, printing measurement results and other functions, the system is stable and reliable, high degree of automation. Used in electric power, chemical industry, environmental protection, petroleum and other fields.

Executive Standard

GB/T264、GB/T258、GB/T7599

Instrument Characteristics

1. LCD large screen, Chinese/English menu, no logo button.

2. Automatic cup change, automatic detection, printing test results, (optional with automatic timing heating function, suitable for large viscosity lubricating oil).

3. The instrument can detect six oil samples.

4. Using the principle of neutralization method, using computer control at normal temperature automatically complete the liquid, titration, stirring, titration end point, LCD screen display determination results and can be printed out, the whole process takes about 4 minutes.

5. With a special reagent bottle containing the extraction liquid and neutralizing liquid, the reagent is not in contact with the air during use, to avoid the influence of solvent volatilization and CO2 in the air.

Technical Parameters

• Working power supply: AC220V± 10% 50Hz

• Maximum power consumption: <100W

• Measuring range: 0.0001 ~ 0.9999mgKOH/g

• Minimum resolution: 0.0001 mgKOH/g

• Measurement accuracy: ± 0.02mgKOH /g when acid value < 0.1

• Acid value ≥0.1 ±0.05 mgKOH/g
