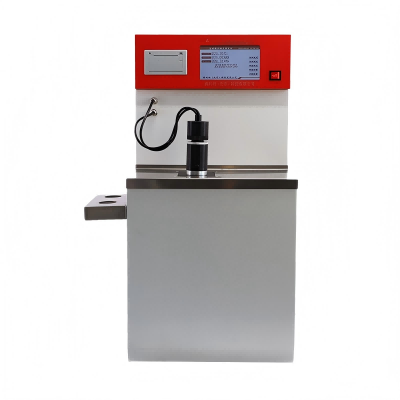

GA1121 Automatic Freezing and Tipping Point Tester

Description:

GA1121 Automatic freezing and tipping point tester is suitable for determining the melting point pour point of lubricating oil and dark petroleum products, there is no limit to the viscosity. It can be used in power, petroleum, chemical, commodity inspection and scientific research departments.

Executive Standard

GB/510、ASTM D2386、GB/T3535、ASTM D97

Instrument characteristics

1. LCD display, touch control, easy to use.

2. Can be heated to 50℃ can also be cooled to -70℃.

3. Automatic detection, automatic printing results, good repeatability.

4. Automatic tilt during detection, fully in line with the standard.

5. High performance compressor refrigeration, long service life.

6. The test method is optional, can be fast detection or normal detection.

7. According to customer requirements to write cooling speed and testing standards.

Technical parameter

• Temperature control range: room temperature ~ -70℃

• Measuring range: room temperature ~ -60℃

• Measurement accuracy: ±1℃

• Resolution: 0.1℃

• Cooling speed: 10 minutes temperature difference > 15℃

• Number of samples: 1

• Rated power: 1500W

• Display mode: LCD

• Printing machine: heat sensitive, 36 characters, Chinese output

• Ambient temperature: 5℃ ~ 40℃

• Relative humidity: ≤85%

• Working power supply: AC220V±10% 50Hz

• Power consumption: <300W

• Overall dimensions: 500mm×490mm×800mm

• Instrument weight: 50kg
