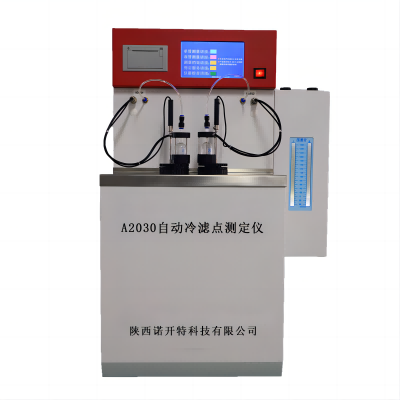

GA2030 Automatic Cold Filter Point Tester

Description:

GA2030 Automatic Cold filter point tester is suitable for the determination of cold filter points of distillate fuels, including diesel engine fuels containing flow improvers or other additives, and fuels used in domestic heating devices. Used in petroleum, chemical industry, electric power, commodity inspection, universities, scientific research and other fields.

Executive Standard

SH/T 0248 、ASTM 6371

Instrument Characteristics

1. The compressor refrigeration system to ensure that the required refrigeration depth.

2. The built-in vacuum pump and electronic precision pressure balancing system to ensure that the suction pressure automatically balance at the set value.

3. Automatically control the temperature difference between the cooling medium and the tested sample to ensure that the cooling speed is controlled and uniform and stable.

4. Internal precision microcomputer timing, to ensure the accuracy of the judgment results.

Technical Parameter

• Temperature range: room temperature ~ -70℃

• Resolution: 0.1℃

• Pressure range: 0 ~ 2kPa (200mmH2O)

• Pressure resolution: 1mmH2O

• Working cold tank: single bath, two bath isothermal

• Temperature measuring element: PT100

• Refrigeration method: compressor refrigeration

• Timing: 60s indexing 1s

• Ambient temperature: 5℃ ~ 45℃

• Relative humidity: ≤85%

• Working power supply: AC220V±10%, 50Hz

• Power consumption: <1500W

• Dimensions: Main machine: 490mm×540mm×800mm

• Filter: 70mm×70mm×300mm

• Weight: Main machine: 50kg filter: 0.5kg
