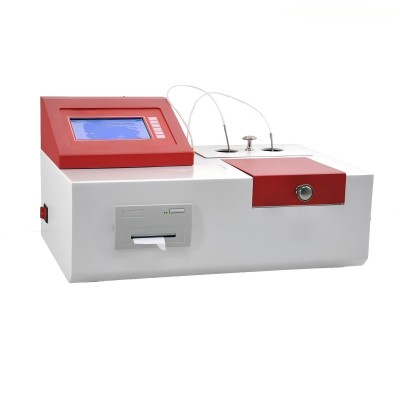

GA2060 Automatic Saturation Vapor Pressure Tester

Description:

GA2060 Automatic Saturated vapor pressure tester is suitable for determining the vapor pressure of gasoline, volatile crude oil and other volatile petroleum products.

Executive Standard

GB/T 8017、ASTM D323

Instrument Characteristics

1.  MCU control of automatic saturated vapor pressure tester, easy to operate, high degree of automation, accurate test results.

2.  Good heating technology, in the separation of water and electricity at the same time, but also to reduce the total height of the water bath, clear bottom, easy to clean.

3.  LCD display, all Chinese interface, when the end of the determination, the system will sound prompt, and lock the test result.

4. Configure the printer, you can print the result.

Technical Parameter

• Working power supply: AC220V±10%, 50Hz

• Power consumption: ≤1700W

• Experimental shells: 3 test shells at the same time

• Water bath temperature: 37.8℃

• Temperature control accuracy: ±0.1℃

• Heating power: 1600W

• Projectile body movement: seesaw type reciprocating movement

• Pressure range: (0 to 200)kPa or (0 to 29) psi

• Ambient temperature: 5℃ ~ 40℃

• Relative humidity: ≤85%

• Overall dimensions: 600mm×500mm×456mm

• Instrument weight: 31kg
