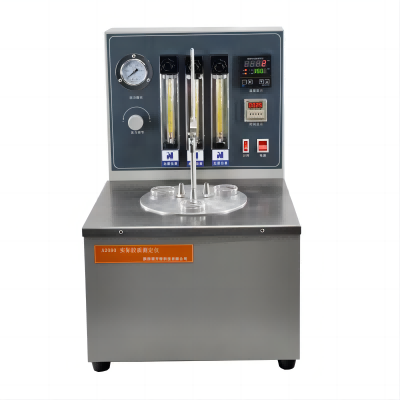

GA2080 Actual Gum Tester (three holes)

Description:

GA2080 Actual Gum Tester (3 holes) Instrument for the determination of actual gum content in aviation gasoline and automotive gasoline. It is suitable for the actual gum test of aviation gasoline and automotive gasoline according to the method specified in GB/T 8019 "Determination of fuel gum content by jet evaporation Method". Application of aviation gasoline and automobile gasoline research, production, use units.

Executive Standard

GB/T 8019 、 ASTM D381

Instrument Characteristics

1, the use of Germany installed temperature sensor.

2, the heating speed is fast, the constant temperature accuracy is high, the metal bath is constant temperature.

3, no noise, no pollution air distribution uniform and stable.

Technical Parameter

• Working power supply: AC220V±10%, 50Hz,

• Evaporation bath type and size: aluminum bath block φ260mm×130mm.

• Number of test holes: 3.

• Test hole size: φ51mm×70mm.

• Operating temperature: (160 ~ 165) ℃

• Temperature control method: automatic temperature control.

• Temperature display: digital display.

• Flow display: displayed by float type air flowmeter.

• Working pressure of air reducing valve: < 0.1MPa.

• Nozzle outlet air flow rate: 600mL/ SEC per hole.

• Input power: < 2000W

• Overall dimensions: 420mm×450mm×520mm
